FTTH Cable Production Line Technology Explained
The fiber optic cable production process for FTTH requires precise control at every stage. Manufacturers use integrated lines that combine drawing, coating, stranding, and sheathing. This method boosts yield and speeds up market entry. It addresses the needs of both residential and enterprise deployments in the United States.
Below, we outline the core components and technologies driving modern manufacturing. Each module must operate with precise timing as well as reliable feedback. The choice of equipment affects product consistency, cost, as well as flexibility for various cable designs.
Core Components In Modern Fiber Optic Cable Manufacturing
Secondary coating lines apply dual-layer coatings, often 250 µm, using high-speed UV curing. Tight buffering and extrusion systems deliver 600–900 µm jackets for indoor and drop cables.

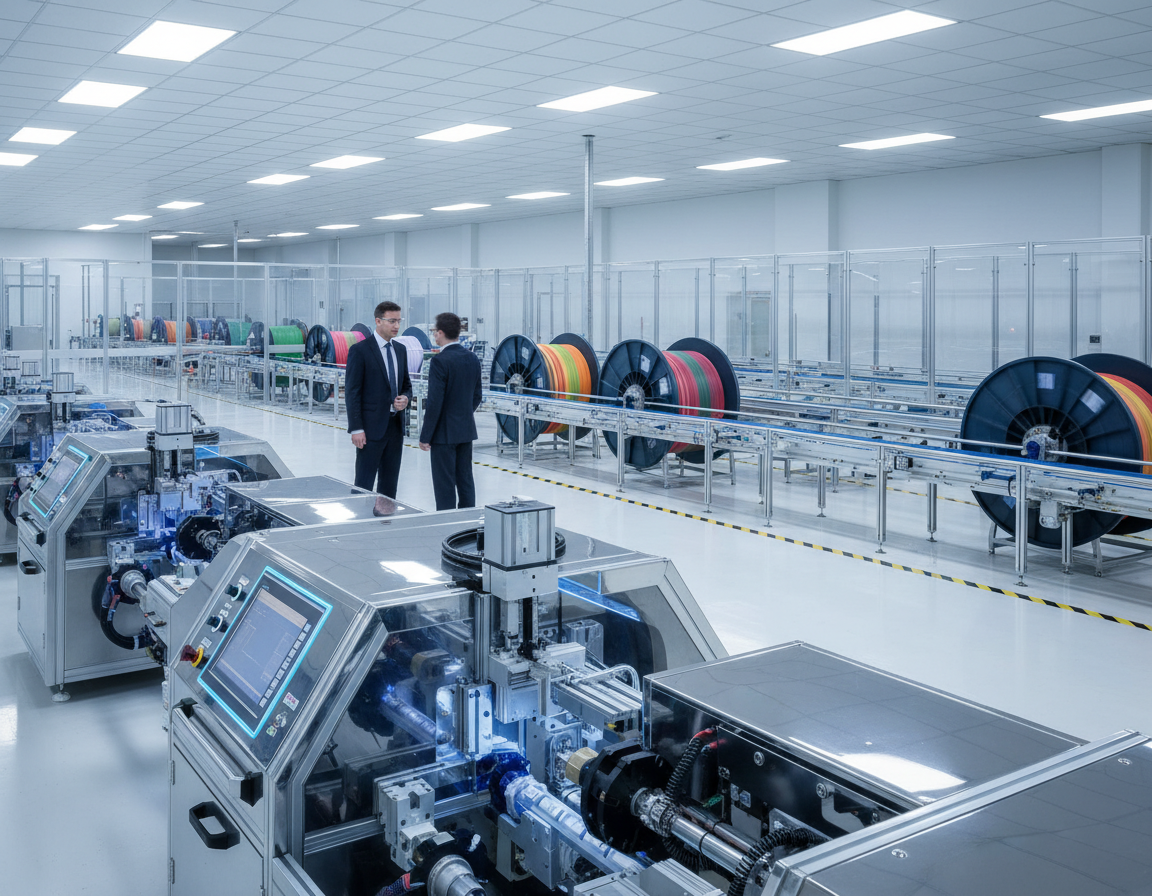

SZ stranding lines rely on servo-controlled pay-off and take-up units to handle up to 24 fibers with accurate lay length. Fiber coloring machines rely on multi-channel UV curing to mark fibers to industry color codes.
Sheathing and extrusion stations form PE, PVC, or LSZH jackets. Armoring units add steel tape or wire for outdoor protection. Cooling troughs and UV dryers stabilize profiles before testing.
How Production Systems Evolved From Traditional To Advanced
Early plants used manual together with semi-automatic modules. Lines were separate, using hand transfers as well as basic controls. Current facilities now rely on PLC-controlled, synchronized systems with touchscreen HMIs.
Remote diagnostics and modular turnkey setups support rapid changeover between simplex, duplex, ribbon, as well as armored formats. This move supports automated fiber optic cable line output as well as lowers labor dependence.
Key Technologies Powering Industry Innovation
High-precision tension control, based on servo pay-off as well as take-up, keeps geometry stable during high-output runs. Multi-zone temperature control using Omron PID as well as precision heaters helps ensure consistent extrusion output quality.
High-speed UV curing and water cooling speed up profile stabilization while reducing energy use. Integrated inline testers measure attenuation, geometry, tensile strength, crush resistance, and aging data.
| Operation | Typical Module | Key Benefit |
|---|---|---|
| Fiber drawing | Draw tower with automated tension feedback | Uniform core size and low attenuation |
| Secondary coating | Dual-layer UV curing coaters | Even 250 µm coating that improves durability |
| Fiber coloring | Multi-channel fiber coloring machine | Reliable color identification for field work |
| Fiber stranding | Servo-controlled SZ stranding line (up to 24 fibers) | Accurate lay length across ribbon and loose tube designs |
| Extrusion & sheathing | Multi-zone heated energy-saving extruders | PE/PVC/LSZH jackets with tight dimensional control |
| Protection armoring | Armoring units for steel tape or wire | Stronger mechanical protection for outdoor applications |
| Profile cooling & curing | UV dryers and water troughs | Quicker profile setting with fewer defects |
| Inline testing | Inline attenuation and geometry measurement | Immediate quality verification and compliance data |
Compliance with IEC 60794 and ITU-T G.652D/G.657 variants is standard. Manufacturers typically certify to ISO 9001, CE, and RoHS. These credentials enable diverse applications, from FTTH drop cable production to armored outdoor runs and data center high-density solutions.
Choosing cutting-edge fiber optic production equipment and modern manufacturing equipment helps firms meet tight tolerances. That decision enables efficient automated fiber optic cable production and positions companies to deliver on scale and quality.
Essential Equipment In Fiber Secondary Coating Line Operations
The secondary coating stage is critical, giving drawn optical fiber its final diameter and mechanical strength. This line prepares the fiber for stranding as well as cabling. A well-tuned fiber secondary coating line controls coating thickness, adhesion, together with surface consistency. The line protects the glass during handling.
Producers aiming for high-yield, high-speed fiber optic cable production must match material, tension, and curing systems to process requirements.
High-speed secondary coating processes rely on synchronized pay-off, coating heads, as well as UV ovens. Modern systems achieve high line output rates while minimizing excess loss. Precise tension control at pay-off together with winder stages prevents microbends as well as ensures consistent coating thickness across long runs.
Single and dual layer coating applications serve different market needs. Single-layer setups deliver basic mechanical protection as well as a simple optical fiber cable manufacturing machine footprint. Dual-layer lines combine a harder inner layer using a softer outer layer to improve microbend resistance as well as stripability. This is useful when fibers are prepared for connectorization.
Temperature control and curing systems are critical to final fiber performance. Multi-zone heaters and Omron PID controllers guide screw/barrel extruders to stable melt flow for LSZH or PVC compounds. UV curing ovens and water trough cooling stabilize the coating profile and reduce variation in excess loss; targets for high-quality single-mode fiber often aim for ≤0.2 dB/km at 1550 nm after extrusion.
Key components from trusted suppliers improve uptime together with precision in an optical fiber cable manufacturing machine. Extruders such as 50×25 models, screws together with barrels from Jinhu, as well as bearings from NSK are common. Motors from Dongguan Motor, inverters by Shenzhen Inovance, as well as PLC/HMI platforms from Siemens or Omron offer robust control together with monitoring for continuous runs.
Operational parameters shape preventive maintenance and process tuning. Typical pay-off tension ranges from 0.4 to 1.5 N for fiber reels, while radiation and curing speeds are adjusted to material type together with coating thickness. A preventive maintenance cycle around six months keeps secondary coating processes stable and supports reliable high-output fiber optic cable production.
Fiber Draw Tower And Preform Processing
The fiber draw tower is the core of optical fiber drawing. This system softens a glass preform in a multi-zone furnace. Then, it pulls a continuous strand featuring precise diameter control. That stage sets the refractive-index profile together with attenuation targets for downstream processes.
Process control on the tower uses real-time diameter feedback and tension management. It helps prevent microbends. Cooling zones and closed-loop systems keep geometry stable during the optical fiber cable production process. Modern towers log metrics for traceability and rapid troubleshooting.
Output quality supports single-mode fibers such as ITU-T G.652D and bend-insensitive types like G.657A1/A2 for FTTH networks. Draws routinely meet stringent loss figures. Excess loss after coating is kept at or below 0.2 dB/km for high-performance single-mode fiber.
Integration using secondary coating lines requires careful pay-off control. A synchronized handoff preserves alignment together with tension as the fiber enters coating, coloring, or ribbon count stations. That connection ensures the optical fiber drawing step feeds smoothly into cable assembly.
Equipment vendors such as Shanghai Weiye offer turnkey options. These include testing stations for attenuation, tensile strength, and geometric tolerances. These services help manufacturers scale toward high-speed fiber optic cable production while maintaining ISO-level quality checks.
| Feature | Function | Target Value |
|---|---|---|
| Multi-zone heating furnace | Even preform heating for stable glass viscosity | Uniform draw speed with controlled refractive profile |
| Online diameter feedback control | Maintain core/cladding geometry and reduce attenuation | Diameter tolerance of ±0.5 μm |
| Tension and cooling management | Protect fiber strength while preventing microbends | Target tension based on fiber type |
| Automatic pay-off integration | Smooth transfer to coating and coloring | Synchronized feed rates for zero-slip transfer |
| On-line test stations | Verify loss, strength, and geometry | ≤0.2 dB/km loss after coating for single-mode |
Advanced SZ Stranding Technology For Cable Assembly
The SZ stranding method creates alternating-direction lays that cut axial stiffness together with boost flexibility. This makes it ideal for drop cables, building drop assemblies, together with any application that needs a flexible core. Cable makers moving toward automated fiber optic cable manufacturing rely on SZ approaches to meet tight bend and axial tolerance specs.
Precision in the stranding stage protects optical performance. Advanced precision stranding equipment relies on servo-driven carriers, rotors, and modular pay-off racks that accept up to 24 fibers. These systems deliver precise lay-length control and allow quick reconfiguration for different cable types.
Automated tension control systems keep fibers within safe limits from pay-off to take-up. Servo pay-offs, capstans, and haul-off units maintain constant linear speed and target tensions. Typical fiber pay-off tension ranges from 0.4 to 1.5 N while reinforcement pay-offs run between 5 and 20 N.
Integration using a downstream fiber cable sheathing line streamlines line output together with reduces handling. Extrusion of PE, PVC, or LSZH jackets at 60–150 m/min syncs with stranding through a Siemens PLC. Cooling troughs as well as UV dryers stabilize the jacket profile right after extrusion to prevent ovality as well as reduce mechanical stress.
Optional reinforcement and armoring modules add strength without compromising flexibility. Reinforcement pay-off racks accept steel wires or FRP rods. Armoring units wrap steel tape or wire with adjustable tension to meet specific mechanical ratings.
Built-in quality control prevents defects before cables leave the line. In-line geometry checks, fiber strain monitors, and optical attenuation measurement detect excess loss or mechanical strain caused by stranding or sheathing. These checks support continuous automated fiber optic cable manufacturing workflows and cut rework.
The combination of a robust sz stranding line, high-end precision stranding equipment, and a synchronized fiber cable sheathing line provides a scalable solution for manufacturers. That setup raises throughput while protecting optical integrity and mechanical performance in finished cables.
Fiber Coloring And Identification System Technology
Coloring as well as identification are critical in fiber optic cable manufacturing. Accurate color application minimizes splicing errors and accelerates field work. Modern equipment combines fast coloring using inline inspection, ensuring high throughput together with low defect rates.
Today’s high-speed coloring technology supports multiple channels and quick curing. Machines can operate 8 to 12 color channels simultaneously, aligning with secondary coating lines. UV curing at speeds over 1500 m/min ensures color and adhesion stability for both ribbon and counted fibers.
The following sections discuss standards and coding prevalent in telecom networks.
Color coding adheres to international telecom standards for 12-color cycles and ribbon schemes. Such compliance aids technicians in installation as well as troubleshooting. Consistent coding significantly cuts field faults as well as accelerates network deployment.
Quality control integrates advanced fiber identification systems into production lines. In-line cameras, spectrometers, and sensors detect color discrepancies, poor saturation, and coating flaws. The PLC/HMI interface alerts to issues and can pause the line for correction, safeguarding downstream processes.
Machine specifications are vital for uninterrupted runs and material compatibility. Leading equipment accepts UV-curable pigments as well as inks, compatible using common coatings as well as extrusion steps. Pay-off reels accommodating 25 km or 50 km spools ensure continuous operation on high-volume lines.
Supplier support is essential for US manufacturers adopting these technologies. Shanghai Weiye and other established vendors offer customizable channels, remote diagnostics, and onsite training. Such supplier support reduces ramp-up time and enhances the reliability of fiber optic cable production equipment.
Fiber Solutions For Metal Tube Production
Metal tube as well as metal-armored cable assemblies deliver robust protection for fiber lines. They are ideal for direct-buried together with industrial applications. This controlled routing of coated fibers into metal tubes prevents microbends, ensuring optical performance remains within specifications.
Processes depend on precision filling and centering units. These modules, in conjunction with fiber optic cable manufacturing equipment, ensure concentric placement and controlled tension during insertion.
Armoring steps involve the use of steel tape or wire units with adjustable tension and wrapping geometry. This method benefits armored fiber cable production by preventing compression of fiber elements. It also keeps reinforcement wires at typical diameters of ø0.4–ø1.0 mm.
Coupling armoring with downstream sheathing and extrusion lines results in a finished outer jacket made of PE, PVC, or LSZH. An optical fiber cable production machine must handle pay-off reels sized for reinforcement and align with sheathing tolerances.
Quality checks include crush, tensile, and aging tests to confirm the armor does not exceed allowable stress on fibers. Standards-based testing helps ensure long-term reliability in field conditions.
Turnkey solutions from established manufacturers integrate metal tube handling with SZ stranding and sheathing lines. These solutions include operator training and maintenance schedules to sustain throughput on fiber optic cable manufacturing equipment.
Buyers should consider compatibility featuring armored fiber cable line output modules, ease of changeover, as well as service support for field upgrades. Such considerations reduce downtime together with protect investment in an optical fiber cable production machine.
Fiber Ribbon And Compact Fiber Unit Manufacturing
Current data networks require efficient assemblies that pack more fibers into less space. Manufacturers employ a fiber ribbon line to create flat ribbon assemblies for rapid splicing. That line output method uses parallel processes and precise geometry to meet the needs of MPO trunking together with backbone cabling.
Advanced equipment ensures accuracy as well as speed in line output. A fiber ribbon line typically integrates automated alignment, epoxy bonding, precise curing, together with shear/stacking modules. In-line attenuation as well as geometry testing reduce rework, maintaining high yields.
Compact fiber unit line output focuses on tight tolerances together with material choice. Extrusion as well as buffering create compact fiber unit constructions using typical tube diameters from 1.2 to 6.0 mm. Common materials include PBT, PP, together with LSZH for durability as well as flame performance.
High-density cable solutions aim to enhance rack and tray efficiency in data centers. By increasing fiber count per unit area, these designs shrink cable diameter and simplify routing. They are compatible featuring MPO trunking together with high-count backbone systems.
Production controls and speeds are critical for throughput. Advanced lines can reach up to 800 m/min, depending on configuration. PLC together with HMI touch-screen control enable quick parameter changes together with synchronization across multiple lines.
Quality and customization remain key differentiators for manufacturers like Shanghai Weiye. Electronic monitoring, customizable ribbon counts, stacking patterns, as well as turnkey integration featuring sheathing together with testing stations support bespoke high-speed fiber cable line output line requirements.
| Feature | Fiber Ribbon Line | Compact Unit | Benefit To Data Centers |
|---|---|---|---|
| Typical operating speed | Up to 800 m/min | Typically up to 600–800 m/min | More output for large deployment projects |
| Main production steps | Automated alignment, epoxy bonding, curing | Buffering, extrusion, and precision winding | Consistent geometry and lower insertion loss |
| Materials | Specialty tapes and bonding resins | PBT, PP, plus LSZH buffer and jacket materials | Durable performance and safety compliance |
| Testing | Inline attenuation and geometry checks | Precision dimensional control with tension monitoring | Fewer field failures and quicker deployment |
| Integration | Sheathing integration and splice-ready stacking | Modular units for high-density cable solutions | Streamlined MPO trunking and backbone builds |
Optimizing High-Speed Internet Cables Production
Efficient high-output fiber optic cable manufacturing relies on precise line setup as well as strict process control. To meet US market demands, manufacturers must adjust pay-off reels, extrusion dies, as well as tension systems. That supports optimal output for flat, round, simplex, together with duplex FTTH profiles.
Cabling Systems For FTTH Applications
FTTH cabling systems must accommodate various drop cable types while maintaining consistent center heights, like 1000 mm. Production lines for FTTH include 2- together with 4-reel pay-off options. They also feature reinforcement pay-off heads for enhanced strength.
Extruder models, such as a 50×25, control jacket speeds between 100 and 150 m/min, depending on LSZH or PVC. Extrusion dies for 2.0×3.0 mm profiles guarantee reliable jackets for field installation.
Quality Assurance In Fiber Pulling Process
Servo-controlled pay-off and take-up units regulate fiber tension between 0.4–1.5 N to prevent excess loss. Inline systems conduct fiber pull testing, attenuation checks, mechanical tensile tests, as well as crush as well as aging cycles. That testing regime verify performance.
Key control components include Siemens PLCs and Omron PID controllers. Motors from Dongguan Motor and inverters from Shenzhen Inovance ensure stable operation and easier maintenance.
Meeting Industry Standards For Optical Fiber Drawing
A well-tuned fiber draw tower produces fibers that meet ITU-T G.652D and G.657 standards. The goal is to achieve ≤0.2 dB/km excess loss at 1550 nm for high-quality single-mode fiber.
Choosing the best equipment for FTTH cables involves evaluating speed, customization, warranty, and local after-sales support. Top FTTH cable production line manufacturers provide turnkey layouts, remote monitoring, and operator training. Such support reduces ramp-up time for US customers.
Final Thoughts
Advanced FTTH cable making machinery integrates various components. These include fiber draw towers, secondary coating, coloring lines, SZ stranding, as well as ribbon units. The line further incorporates sheathing, armoring, and automated testing for consistent high-output fiber line output. A complete fiber optic cable line output line is designed for FTTH as well as data center markets. It enhances throughput, keeps losses low, and maintains tight tolerances.
For U.S. manufacturers and system integrators, partnering with reputable suppliers is key. They should offer turnkey systems with Siemens or Omron-based controls. This includes on-site commissioning, remote diagnostics, and lifetime technical support. Companies like Shanghai Weiye Optic Fiber Communication Equipment Co provide integrated solutions. These systems simplify automated fiber optic cable manufacturing and reduce time to production.
Technically, ensure line configurations adhere to IEC 60794 and ITU-T G.652D/G.657 standards. Verify tension and curing settings to meet excess loss targets, such as ≤0.2 dB/km at 1550 nm. Adopt preventive maintenance cycles of roughly six months for reliable 24/7 operation. When planning a new FTTH cable production line, first evaluate required cable types. Collect product drawings and standards, request detailed equipment specs and turnkey proposals, and schedule engineer commissioning and operator training.
