Have you ever wondered if a 3/4″ copper compression union can seal leaks more quickly than soldering or push-fit repairs? This short introduction presents the 3/4″ Copper Compression Union as a reliable, contractor-grade plumbing connector. It works well for both DIY homeowners and professional plumbers. This union delivers a quick solution, frequently avoiding the need for a torch, dedicated solder, or prolonged downtime.
This resource is about 3/4 Copper Compression Fitting
The design is uncomplicated, relying on a nut and ferrule to create a secure, leak-proof seal on copper tubing. That simplicity makes it a popular choice, and wholesalers like Installation Parts Supply stock it for same-day shipping on urgent jobs.
Subsequent sections will delve into how the 3/4″ copper compression union functions. We will cover its benefits compared with brass and push-fit alternatives and offer step-by-step guidance for a durable, long-lasting connection.

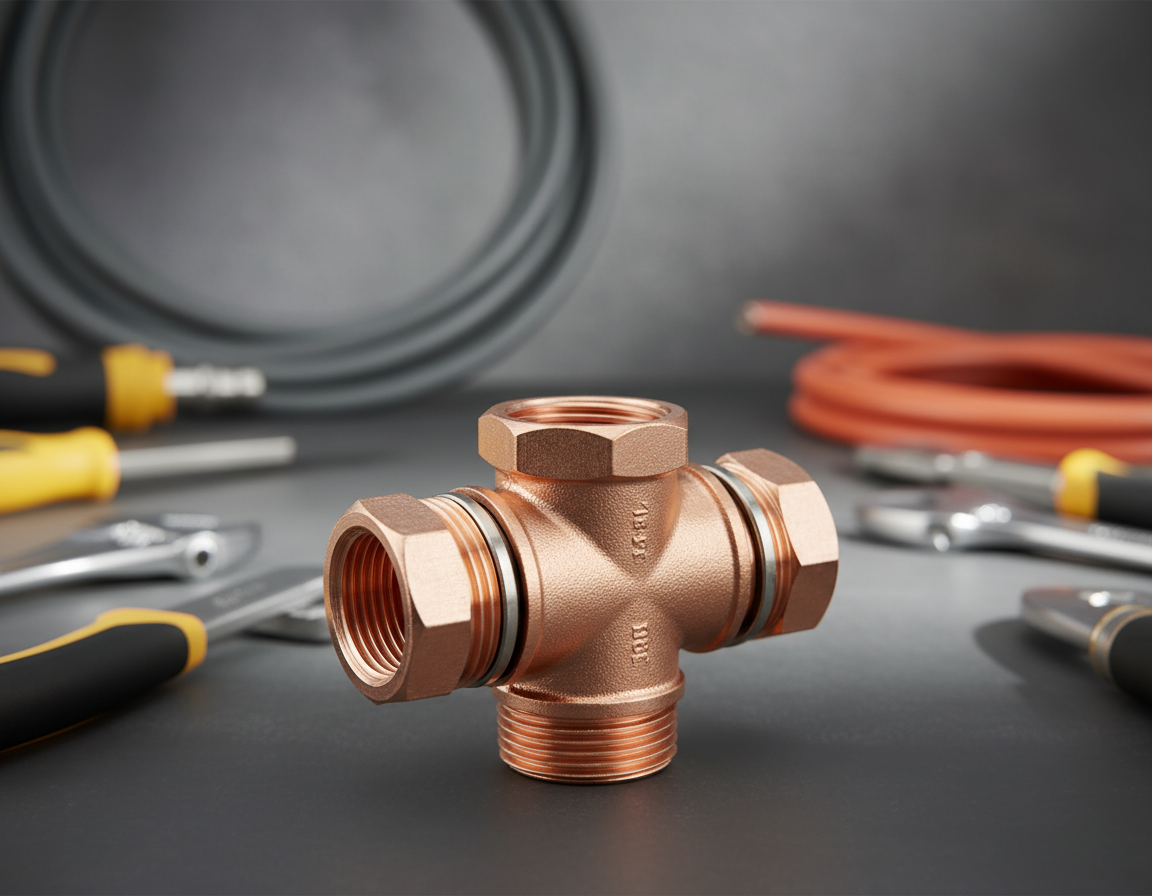

Understanding What A 3/4″ Copper Compression Union Is And How It Works
The 3/4 inch copper union is a simple copper pipe fitting that joins two pipe ends of the same nominal size without soldering. It includes a union body, two nuts, and ferrules. That design makes it ideal for repair work, reachable joints, and installations where applying soldering heat is not practical.
What a compression union means
A compression union forms a removable mechanical joint by compressing ferrules onto the pipe ends as the nuts are tightened. The ferrules deform slightly and grip the pipe outer diameter, creating a tight seal against the union body. Plumbers commonly use this fitting for fast replacements and serviceable supply-line connections.
How the compression mechanism forms a leak-proof connection
When each nut is turned, the ferrule is driven inward. The ferrule squeezes uniformly around the pipe and seats into the union body. Correct alignment and recommended torque produce a leak-proof connection suitable for potable water. Too little tightening can cause seepage, while overtightening may distort the ferrule and ruin the seal.
Why copper is used: durability and corrosion resistance
Because copper naturally resists corrosion and remains dimensionally stable, the 3/4 inch copper union offers long service life. Copper fittings generally resist wear under typical water conditions better than many plastics and some metals. This dependable performance is one reason copper is favored for durable, long-term plumbing repairs.
| Feature | 3/4 inch copper union | Common alternative |
|---|---|---|
| Base material | Copper | Brass or plastic |
| Sealing method | Ferrule compression for a leak-proof connection | Push-fit fittings or soldered joints |
| Serviceability | Can be removed for repairs | Push-fit often removable; soldered permanent |
| Resistance to corrosion | High | Varies; brass performs well, some plastics are inert |
| Typical uses | Fast repairs, transitions, and accessible joints | Long runs, concealed soldered connections |
Benefits Of Using A Copper Pipe Fitting For Repairs
When selecting plumbing repair parts, the choice matters greatly for long-term performance. Copper pipe fittings stand out due to their strength and proven longevity in both potable water and HVAC systems. A high-quality copper compression union provides a durable joint that can handle mechanical stress and routine maintenance.
Durable copper union vs. brass and plastic alternatives
Copper unions boast superior mechanical strength and resist deformation under torque. Compared with brass compression couplings from brands like Thrifco Plumbing, copper is generally more compatible with copper pipe systems. Although plastic push-fit couplings install quickly, they do not match copper for heat resistance and long-term durability, especially in high-use or high-temperature environments.
Corrosion-resistant union for long-term reliability
Copper resists many of the common forms of corrosion found in potable water systems. A corrosion-resistant union minimizes the risk of pinhole leaks and mineral attack when properly installed and matched with compatible metals. Routine inspections and proper water chemistry are important for helping the fitting deliver a long service life as a dependable plumbing repair part.
Applications that favor copper compression unions
Copper compression unions are commonly chosen for residential potable water lines, HVAC supply and return lines, and commercial jobs where durability matters most. They are well suited to situations where future disassembly or servicing may be needed, making them useful for both contractors and homeowners. Distributors such as Installation Parts Supply stock contractor-grade copper unions for these common uses.
Materials, Sizing, And Compatibility Factors
Material and size are both essential when selecting a plumbing connector. Copper unions are appreciated for their corrosion resistance and clean appearance. Before installation, it is important to verify whether the fitting is sized by nominal pipe size or outside diameter.
3/4 inch copper union size details is critical, especially when considering IPS or OD standards. A 3/4 inch copper union will usually correspond to 3/4″ IPS, while copper tubing is sold by outside diameter. Always confirm the product specifications and measure the tube OD so you do not run into mismatches in confined areas.
Compression fitting compatibility can vary by manufacturer and pattern. Many compression unions are compatible with hard copper tubing. For PEX or CPVC systems, approved adapter fittings from the piping material’s manufacturer should be used to preserve warranty coverage and code compliance.
Whether to use a compression fitting, a soldered joint, or a push-fit connection depends on the needs of the project. Compression fittings are ideal for quick repairs, removable joints, or when heat cannot be applied. Soldered joints are usually best for permanent, tamper-resistant seals in concealed installations. Push-fit fittings provide tool-free installation, but they may have limits related to pressure, temperature, and long-term durability.
Prior to purchase, make sure the fitting is either short pattern or standard pattern to ensure proper clearance. Measure the nut and ferrule stack and check if the product lists compatibility as a specific combination, such as a brass coupling for IPS versus copper OD. This helps prevent unnecessary return trips and reorders.
| Factor | Compression Union | Soldered Joint | Push-Fit |
|---|---|---|---|
| Installation speed | Fast, with limited tools | More time-consuming, torch required | Fastest, tool-free |
| Removability | Serviceable and removable | Permanent connection | Removable depending on model |
| Recommended use | Repairs and heat-sensitive areas | Permanent concealed lines | Quick installs, temporary or where approved |
| Material compatibility | Copper tubing, plus adapters for PEX/CPVC | Primarily brass and copper | Varies by manufacturer, some PEX/Copper |
| Size notes | Confirm 3/4 inch copper union sizing (IPS vs OD) | Match tube OD and wall thickness | Refer to the maker’s sizing guide |
Step-By-Step Guide For Installing An Easy Installation Fitting
Follow this clear install guide to fit a 3/4″ copper compression union with confidence. The instructions below explain the tools, preparation, assembly, torque guidance, and leak inspection needed for a dependable plumbing connector installation. You can source the parts from Installation Parts Supply or nearby plumbing wholesalers for contractor-grade quality and, where offered, same-day pickup.
Tools and prep
Gather two adjustable wrenches, or one wrench and one adjustable spanner, along with a tube cutter, a deburring tool or file, and a torque wrench if you want precise tightening. Purchase ferrules, nuts, and the union body from Installation Parts Supply or a nearby plumbing wholesaler to ensure job compatibility. Have a clean rag and a flashlight nearby.
How to prepare pipe ends and components
Cut the copper pipe square with a tube cutter. Deburr the cut end and remove sharp edges so the ferrule seats properly and evenly. Clean the pipe OD of oxidation, paint, and debris. Slide the nut onto the pipe with its threaded end facing the union, then place the ferrule on in the proper orientation before inserting the pipe into the union body.
Compression union installation assembly
Push the pipe fully into the union body until it seats against the internal stop. Hand-tighten the nuts on both sides to begin. Hold the union body with the adjustable wrenches and tighten the nut carefully. For most fittings, follow the manufacturer’s guidance for the number of turns past finger-tight or use the supplied torque value if one is given.
Torque tips and avoiding common mistakes
Do not overtighten; excessive force can deform the ferrule or pipe and lead to leaks. If a torque wrench is available, use the manufacturer’s recommended torque setting. If no torque value is given, tighten in stages: wrench one to one-and-a-quarter turns past finger-tight, then test under pressure. Re-check torque after initial pressurization.
Leak checking and final steps
Restore water pressure, then check the joint for any visible weeping. Use a dry cloth or paper towel to detect slow leaks around the compression fitting. If a small weep appears, tighten the connection slightly. If the leak persists, relieve system pressure and disassemble the joint to inspect or replace the ferrule and nut before reassembling.
| Step | Action | Tip |
|---|---|---|
| One | Collect tools from Installation Parts Supply or a local wholesaler | Use contractor-grade ferrules and nuts for better durability |
| Two | Cut the pipe square and deburr it | Clean OD to ensure proper ferrule seal |
| Step 3 | Place the nut first, then the ferrule, onto the pipe | Orient ferrule per manufacturer guidance |
| Four | Push the pipe fully into the 3/4″ copper compression union, then hand-tighten | Begin with even hand-tightening on both nuts |
| Step 5 | Wrench tighten to specified turns or torque | Avoid overtightening to prevent deformation |
| Step 6 | Pressurize the system and check for leaks | A towel helps detect slow weeps; always relieve pressure before taking the joint apart |
Common Troubleshooting And Quick Connect Fix Tips
Minor leaks around a compression joint usually appear as a steady drip at the nut or light weeping once the system is under pressure. First make sure the line pressure is off and the work area is dry. Check the pipe end, the nut, and the ferrule for visible damage before deciding the body is the problem.
Identifying and repairing minor leaks
As a basic quick connect fix, tighten the nut according to the manufacturer’s recommended turns. If the leak persists, depressurize the line and take the joint apart. Inspect the ferrule for nicks, flattening, or distortion and check the nut threads for wear. Re-cut and deburr the pipe end if it is damaged, then reassemble with a fresh ferrule and proper torque to restore a leak-proof connection.
When ferrules or the whole compression fitting should be replaced
Replace the ferrules if they display visible distortion or cuts caused during installation. Replace the whole compression union if the nut, body, or threads are cracked, corroded, or stripped. Leaks that keep returning at the same joint often indicate a material or alignment problem; consider a higher-grade contractor fitting from a trusted supplier or switch to a soldered joint for a more permanent leak-proof connection.
Preventive maintenance and avoiding overtightening or misalignment
During first assembly, avoid overtightening. Begin by hand, then finish with the recommended torque or the specified turns past finger-tight. Keep pipe ends aligned so the ferrule seats evenly and does not cut at an angle. Inspect the joints after installation and then inspect them again under service pressure. Regular checks reduce the need for compression fitting troubleshooting and help catch early signs of wear before a leak develops.
| Issue | Likely Cause | Quick Fix | When to Replace |
|---|---|---|---|
| Leak at nut | Minor ferrule seating issue or loose nut | Retighten to manufacturer guidance, then retest under pressure | Persistent drip after reassembly |
| Weeping after installation | Debris, a poor cut, or pipe misalignment | Depressurize, re-cut, deburr, re-seat ferrule | Ferrule is cut or distorted |
| Sudden leak under load | Cracked nut or stripped threads | Replace nut and retest | Replace the full fitting if the body or threads are damaged |
| Repeated leaks same joint | Bad alignment or an incompatible fitting grade | Realign pipe; use correct installation torque | Move to a higher-grade fitting or a soldered connection |
Buying Guide: How To Select The Right Plumbing Connector From A Wholesale Distributor
Begin by examining the material specifications and certifications. Ensure the plumbing connector is rated for potable water, has manufacturer certification, and comes with a contractor-grade warranty. Check whether the pattern is short or standard, and verify that the ferrules and nuts are included. Matching the fitting to the pipe OD or IPS before purchase is crucial if you want to avoid returns.
Look for corrosion-resistant features and dependable brands like Mueller Industries, NIBCO, and Viega. A well-made copper union will often perform better than lower-cost options in corrosive conditions. Consider the installation needs and compatibility with adapters, especially for mixed-material systems like copper-to-PEX.
Because Installation Parts Supply stocks contractor-grade copper unions, ferrules, nuts, and compatible adapters, job-site procurement can move more quickly. They provide same-day shipping on in-stock items when time is critical. For bulk orders, contact their sales or customer support and cross-reference part numbers to ensure exact matches.
Value should be assessed by lifecycle cost, not just the initial purchase price. Brass compression couplings, such as those from Thrifco Plumbing, may appear cheaper online. However, longevity, corrosion resistance, and maintenance requirements should also be part of the decision. While a copper union may cost more upfront, it can provide lower lifetime costs in aggressive water conditions.
Be aware of manufacturer MAP policies that influence visible online discounts. Some retailers may hide advertised reductions until checkout, so request a final quote if you want accurate comparisons. Inquire about contractor pricing, returns, and warranty handling from wholesalers to uncover true value.
If you’re looking for a quick comparison, consider a short checklist:
- Material and certification for potable water
- Whether ferrules, nuts, and adapters are included
- Match with the correct pipe OD/IPS
- Brand reputation and contractor-grade quality
- Final cost after MAP, shipping, and warranty terms
Apply this checklist when buying from Installation Parts Supply or a local wholesale distributor. This approach ensures you choose a plumbing connector that balances performance, durability, and cost for your project.
Safety, Code Awareness, And Best Practices For Plumbers And DIYers
Working on a 3/4″ copper compression union requires strict adherence to safety guidelines and knowledge of local regulations. Before any work begins, the necessary requirements should be verified. Even straightforward repairs require caution, especially where regulated procedures apply.
U.S. local code considerations for compression fittings
In the U.S., different areas have their own rules for compression fittings. In many areas, these fittings are permitted on cold and hot water lines when they are properly listed for safe use. However, some inspectors might limit certain ferrule types or demand brass components with specific certifications. Always verify the local plumbing code and your inspector’s expectations before installing a compression union.
Handling copper fittings safely around pressurized systems
Before loosening any nut, always confirm that the line has been depressurized and drained. When cutting copper pipe, wear eye protection and gloves that resist cuts. Have a fire shield and a Class B-C extinguisher ready if you decide to solder instead of using compression fittings. Even though compression fittings avoid the use of heat, they still require a careful and secure assembly.
Knowing when to call a licensed plumber instead of doing it yourself
If the task involves gas piping, concealed lines, difficult access, or multi-story risers, it is usually best to call a licensed plumber. A licensed plumber can help ensure code compliance, choose the proper materials for safe use, and restore pressurized systems safely.
| Situation | DIY OK | Call a Licensed Plumber |
|---|---|---|
| Simple supply-line leak at an accessible union | Yes | Not usually, unless the leak returns |
| Repairs inside concealed walls or ceilings | No | Yes |
| Gas or combined mechanical systems | No | Yes |
| Not sure about local compression fitting codes | No | Yes |
| Replacing a basic plumbing repair part such as a ferrule or nut | Yes, with proper tools | Yes, if the repair does not seal properly |
Conclusion
The 3/4″ copper compression union is a durable plumbing connector that works well for a wide range of repair and joining tasks. Its corrosion-resistant copper body and properly installed ferrule help ensure a leak-proof connection. That holds true when the pipe ends are properly prepared and the union is tightened to the correct torque.
Selecting a contractor-grade, easy installation fitting from trusted suppliers such as Installation Parts Supply supports dependable part quality. It also offers same-day shipping when time is of the essence. Prior to purchase, it is wise to compare copper unions with brass compression couplings and push-fit options. That comparison helps identify the best option based on compatibility, longevity, and job requirements.
Always follow local codes and use the proper tools during installation. Inspect the joints after pressurization to confirm a secure, leak-proof connection. If you notice wear on the ferrules or fittings, replace them. If the repair is beyond your comfort level or raises code concerns, it is best to call a licensed plumber. That helps ensure the system remains both safe and code-compliant.
